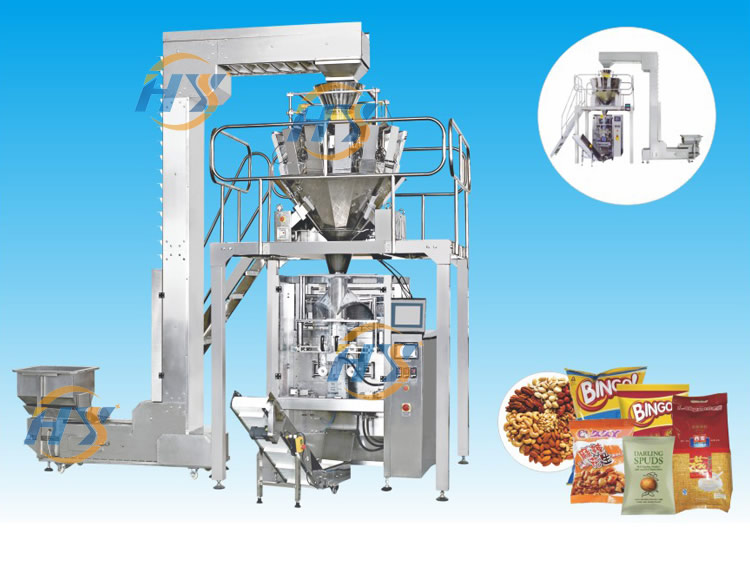

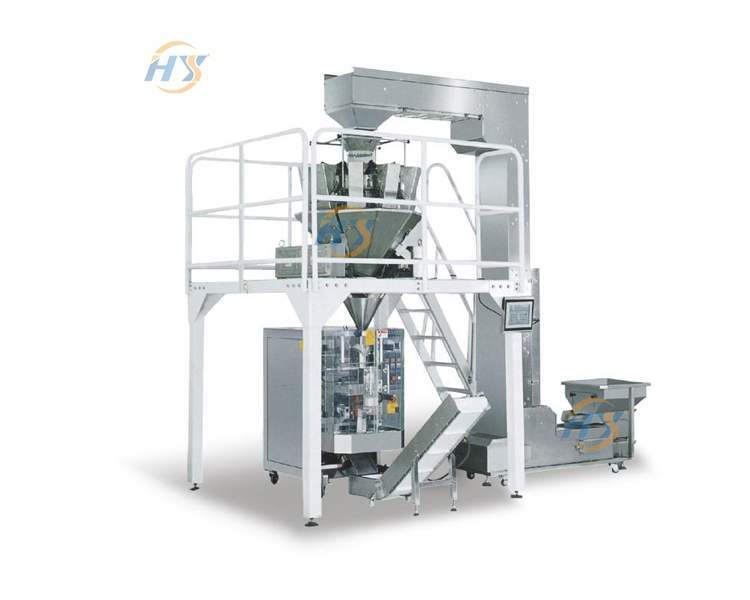

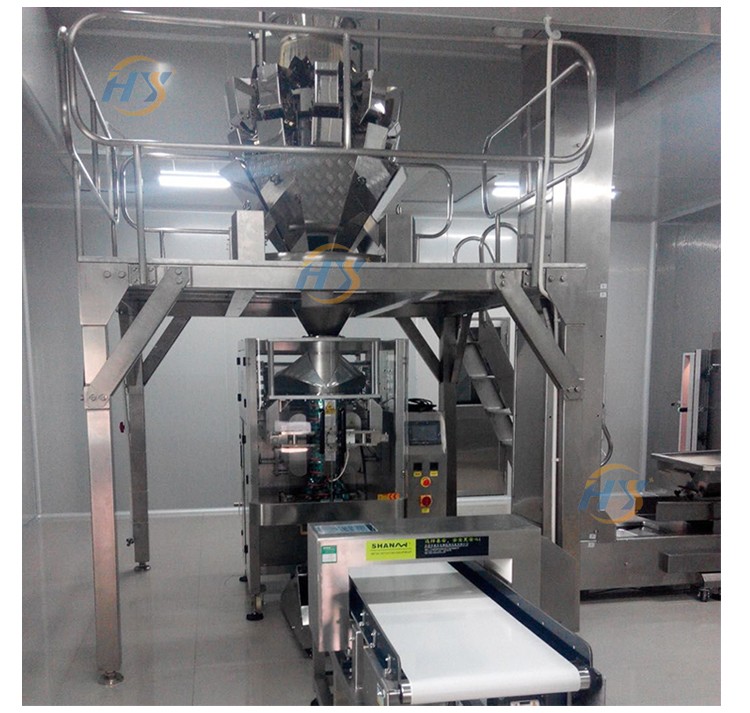

The unitincluded contained part
①HS-720 large vertical packing machine.
②14 heads combination weigher
③ Z type material conveyer Includes Vibration feeder .
④Supporting platform.
⑤Product conveyor.
Applications
It's suitable to use in packing the high accuracy and easy fragile material,
such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling,
chocolate, pet food, small hard wares, medicine etc.
| Item | Conten |
| Packing speed | 10-50bags/min |
| Bag-size | (w)110-350mm (L)100-420mm |
| Bag making mode | Second stretch 600mm |
| Range of measuring | Max 4000ml |
| The max width of packing film | 7200mm |
| Film material | POPP/CPP,POPP/VMCPP,BOPP/PE,PET/VMPET/ PE,PET/AL/PE,NY/PE,PET/PET,ETC. |
| Film thickness | 0.04-0.10mm |
| Air consumption | 0.8CBM/min 0.8MPa |
| Main power/Voltage | 4kw/220V 50-60Hz |
| Dimension | (L)1780*(W)1350*(H)2000mm |
| Total configuration weight | 800kg |

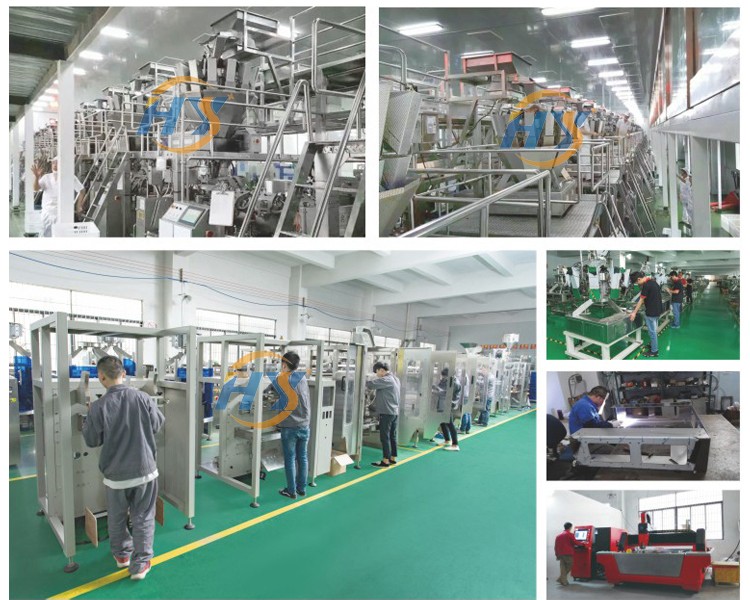

Our company focuses on the production and processing of food machinery, provides customized services according to the needs of different programs, and develops long-term services and cooperation with Europe, Asia, South America and other regions and countries.
1. Why do you choose Huayuan Food Machinery?
We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.
2. Is the design scheme free of charge?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
3. Production cycle?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
4. After-sales service
We will guide the installation online and provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
