Vacuum frying machine equipment configuration
Composition system of vacuum frying machine: vacuum frying axe, automatic cap opening system, basket feeding system, oil circulating heating system, vacuum system, water vapor collection system, automatic oil removal system
Electrical control system.
1. The vacuum system is composed of a vacuum axe, a water vapor collector condenser, a water ring vacuum pump, a water cooling system and related valves and pipelines.
Used for vacuuming the system and maintaining during frying High vacuum.
2.Oil steam heating system is composed of globe valve, steam solenoid valve, safety valve and related valve parts, pipelines, monitoring instruments, etc.
Use to heat cooking oil.
3. The electronic control system is composed of well-known PLC, touch screen and low-voltage electrical appliances for system protection and automatic control.
4. The degreasing system is used for vacuum centrifugal degreasing at the end of frying to reduce the oil content of Fried food.
External dimension :1000x1200x1500mm
Power: 5 kw
Electric heat pipe power: 20KW
Fried basket: Diameter 300Xh200mm
Frying temperature: 70~120 degrees adjustable
Frying time: 30~90min adjustable
| Products | Specifications | Power | Amount | Explain |
| Stainless steel vacuum frying machine | ZK-300 | 1.5KW | 1 piece | External wire-drawing and internal polishing |
| The heating tank | D-600 | / | / | Heating tube |
| Stainless steel vapor collector condenser | / | / | 1 set | Appearance drawing |
| Take off the oil motor | / | 0.75KW | 1 piece | / |
| Heating system | Electric heating | / | 1 piece | Heating tube |
| Centrifugal oil pump | / | 2.2KW | 1 piece | / |
| Water ring vacuum pump | / | / | 1 piece | / |
| PLC and touch screen control cabinet | Siemens Germany | / | 1 piece | Including frequency converter |
| Configuration information is for reference only and supports output customization | ||||
Same style Fried in vacuum-Low temperature vacuum fryer

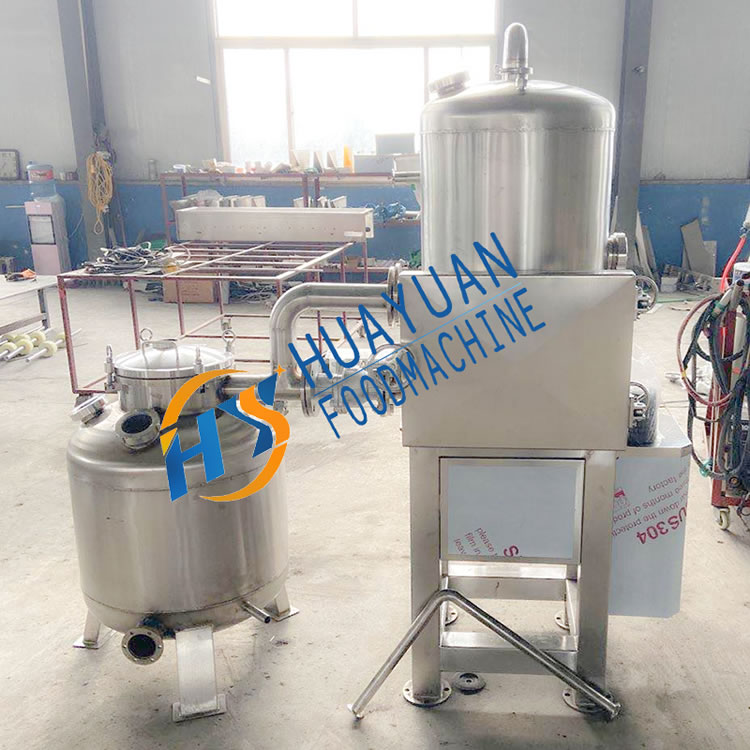

1.Stainless steel vacuum frying machine
2.heating tank
3.Stainless steel vapor collector condenser
4. Degreasing motor
5.Steam heating system
6.Centrifugal oil pump
7.Water ring vacuum pump
8.PLC and touch screen control cabinet
①. Working Principle:
With fresh fruits and vegetables as the main raw materials, edible vegetable oil as the heating medium, as well as low temperature vacuum frying (VF) and other advanced technologies, the crisp slices of fruits and vegetables can be rapidly dehydrated in a very short time and dry time to obtain low water content.
Fruit and vegetable foods are low in oil, crisp but not greasy, retain the original shape, color, aroma and taste of fruits and vegetables, and are rich in vitamins, minerals, fiber and other nutrients.
They are low in sugar, low in salt, low in fat and low in fever.
Stainless steel coil heating, fast heating, constant oil temperature to ensure the color, aroma, taste and shape of the product.
②. Scope of Food application:
1). Fruits: such as apple, banana, monkey fruit, pineapple, winter date, strawberry, jackfruit, etc.
2). Vegetables: such as carrot, turnip, sweet potato, pumpkin, garlic, onion, mushroom, white gourd, okra and so on.
3) Meat: such as beef, fish, shrimp, octopus and so on.
③. Processing:
Raw materials → sieving → cleaning → slicing (cut into sections) → fixing → drainage → vacuum macerating → quick-frozen → vacuum frying → vacuum degreasing → seasoning → products
④. Composition of vacuum low temperature frying equipment:
Vacuum fryer, oil heating system, vacuum system, steam capture system, hydraulic system, pneumatic system, automatic oil removal system, electrical control system.
Zhengzhou Zhiyin Industrial Co., LTD is a professional manufacturer integrating meat processing equipment and vegetable cleaning equipment production and sales, has formed a set of raw material supply, product development, process design, finished product inspection, production and operation, storage and transportation, technical services as one of the perfect operating system.
Mainly engaged in sandwich pot series, cooking pot series, mixing pot series, meat processing equipment, vegetable cleaning equipment. The company has advanced processing center, laser cutting equipment, shear plate bending equipment and a full set of testing equipment. The main products are: sandwich pot, cold powder machine, rolling kneading machine, chopping and mixing machine, mixing stuffing machine, meat mincer, enema machine, vegetable cleaning machine, desalination machine, pasteurization machine, vibrating screen, flexible packaging blow-dry machine, etc.
Our company focuses on the production and processing of food machinery, provides customized services according to the needs of different programs, and develops long-term services and cooperation with Europe, Asia, South America and other regions and countries.
Email: Sale@Frenchfriesline.com
Wechat/WhatsApp:+86 15249674563
1. Why do you choose ZhiYin Food Machinery?
We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.
2. Is the design scheme free of charge?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
3. Production cycle?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
4. After-sales service
We will guide the installation online and provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
