Potato Chips French Fries Cold Air Drying Machine fruit washing dryer food drying machine

Potato Chips French Fries Cold Air Drying Machine fruit washing dryer food drying machine
Products Inquiry
Click Refresh Verification Code

Vegetables brush washing machine

Applicable Industries:Hotels, Food & Beverage Factory, Farms, Restaurant, Food & Beverage Shops

After Warranty Service:Video technical support, Online support Local Service Location:Turkey, Viet Nam, Philippines Showroom Location:Turkey, Viet Nam, Philippines Condition:New Place of Origin:Shandong, China Brand Name:HUAYUAN Type:Air drying machine Voltage:220V/380V Power(W):6KW Weight:560KG Dimension(L*W*H):3000*1100*1480MM Certification:ce Warranty:1 YEAR After-sales Service Provided:Video technical support Name:potato chips line air dry machine Application:Vegetable Fruit Drying Machine Material:SUS304 Belt Width:700mm Belt style:Flat mesh belt Capacity:Customer Required Package:Standard Wooden Case Function:Cooling+Drying+Dehumidity Related machine:washer/Dewatering/Packing machine

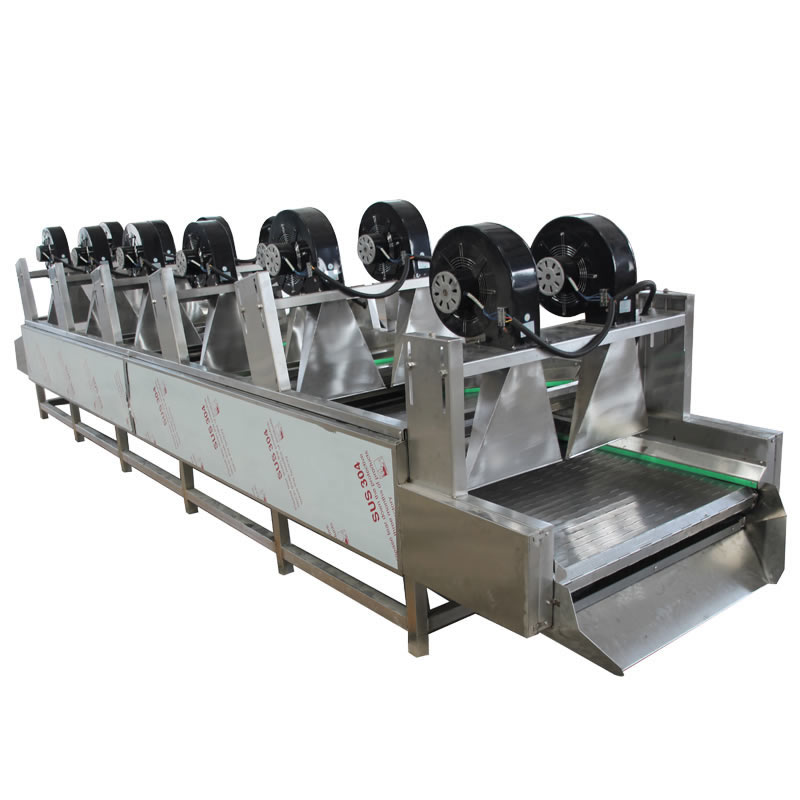

potato chips line fruit vegetable processing machinery air dryer drying machine

Flat mesh belt style: 700mm in width

fruit vegetable air dryer drying machine_02.jpg

vegetable blanching machine frozen fruit and vegetable blanching machine_04.jpg

1. Made of 304 stainless steel, with a width of 70cm/80cm/100cm, customizable.

2. Working principle: the fruit and vegetable air knife dryer can effectively remove water droplets from the material surface in a short time through high pressure air blowing.

3. Temperature tip: the indoor temperature is dry, which can keep the color and quality of vegetables.

4. Overall features of the product: A. Food-grade SUS stainless steel. B.C. the fan height can be adjusted.

5. The default flat belt style transmission, according to the same size length to increase the output, can be customized inverted belt transmission.

6. Recommended by the factory: to improve production efficiency, this machine can be combined with bubble cleaner and vibration dehydrator to form a small wind trunk.

Model
Dimension
Motor power
Belt width
Capacity
HYFGJ-700
3000*810*1480mm
6kw
700mm
300-500 kg/h
HYFGJ-800
3000*910*1480mm
6kw
 800mm
400-600 kg/h
HYFGJ-1000
3000*1100*1480mm
6kw
1000mm
500-700 kg/h
HYFGJ-1200
3000*1310*1480mm
6kw
1200mm
600-800 kg/h

Product picture details shows

fruit vegetable air dryer drying machine_06.jpg

fruit vegetable air dryer drying machine_07.jpgfruit vegetable air dryer drying machine_08.jpg
Common mesh beltCustomized mesh belt for herbs
fruit vegetable air dryer drying machine_10.jpgfruit vegetable air dryer drying machine_11.jpg
Wind nozzle 1.5mm stainless steelManually adjust the fan height
fruit vegetable air dryer drying machine_13.jpgfruit vegetable air dryer drying machine_14.jpg
Mesh belt speed regulating machineAir dryer control box

vegetable blanching machine frozen fruit and vegetable blanching machine_20.jpg

vegetable blanching machine frozen fruit and vegetable blanching machine_22.jpg

huayuan food machine (19).jpg

Zhengzhou Zhiyin  Industrial Co., LTD is a professional manufacturer integrating meat processing equipment and vegetable cleaning equipment production and sales, has formed a set of raw material supply, product development, process design, finished product inspection, production and operation, storage and transportation, technical services as one of the perfect operating system.
Mainly engaged in sandwich pot series, cooking pot series, mixing pot series, meat processing equipment, vegetable cleaning equipment. The company has advanced processing center, laser cutting equipment, shear plate bending equipment and a full set of testing equipment. The main products are: sandwich pot, cold powder machine, rolling kneading machine, chopping and mixing machine, mixing stuffing machine, meat mincer, enema machine, vegetable cleaning machine, desalination machine, pasteurization machine, vibrating screen, flexible packaging blow-dry machine, etc.

Can be widely used in all kinds of meat products, soy products, dairy products, egg products, seafood, beverage products, snack food sterilization, and agricultural products, herbal processing equipment.
