Fruit and vegetable cleaning and peeling machine fruit and vegetable cleaning brush Professionally made for vegetable processing

Scope of application:

Suitable for washing leafy vegetables, root vegetables and preserved fruits, such as: Chinese cabbage, lettuce,bo Bo, turnip, etc.This device is especially suitable for cutting and not easily sticking to the net belt.

One - An overview:

Vortex vibration cleaning machine is a new type of fruit and vegetable cleaning and processing machinery developed by ourcompany.It and other cleaning machines have two big differences, one is clean water, two is vibration transport materials.The machine mechanism is simple, low failure rate, compact structure, easy to operate, good cleaning effect, and good waterfiltration, high productivity.

Two-Working principle:

Vortexing is formed by using the cleaning water to make the material clean in the vortexing water.When the material is cleaned, it makes spiral movement together with the clean water in the cleaning tank. After the material is cleaned, it is pushed forward by the vibration conveying mechanism under the action of hydrodynamics and sent out of the cleaning machine.

Three- Main structures:

The machine is composed of a frame, a cleaning tank, a water pump, a water storage tank, a vibration conveyer, an electrical control system and a control switch.

Four- Main technical parameters:

1. Power: 4.8KW;

2. Power supply: 50HZ, 380V;

3. External dimension: 4200*1150*1600mm;

4. Production capacity: 1000-2000kg/h;

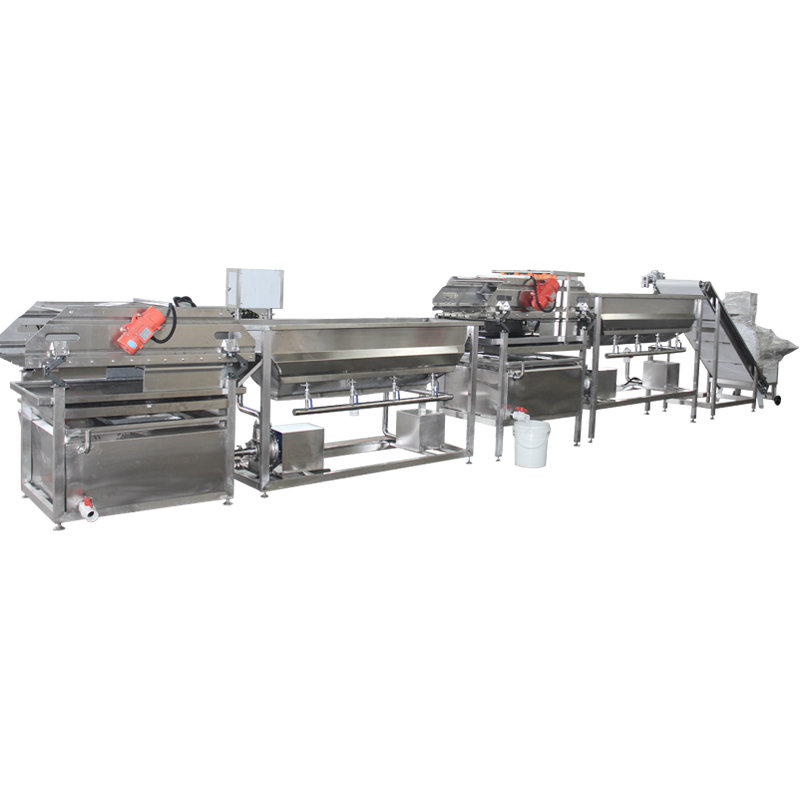

The design of the production line is generally as follows: selection table (and hob type vegetable cutter combined into one) + elevator + eddy current cleaning machine (first cleaning) + eddy current cleaning machine (ozone cleaning is added for the second time) + air dryer + packing.

High pressure spray	Vibration dewatering machine
Vibrating dewatering screen	Water circulation storage tank
Clean the asphalt sieve	Bubble circulating pump

Our company focuses on the production and processing of food machinery, provides customized services according to the needs of different programs, and develops long-term services and cooperation with Europe, Asia, South America and other regions and countries.

1. Why do you choose Huayuan Food Machinery?

We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.

2. Is the design scheme free of charge?

We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.

3. Production cycle?

We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.

4. After-sales service

We will guide the installation online and provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
