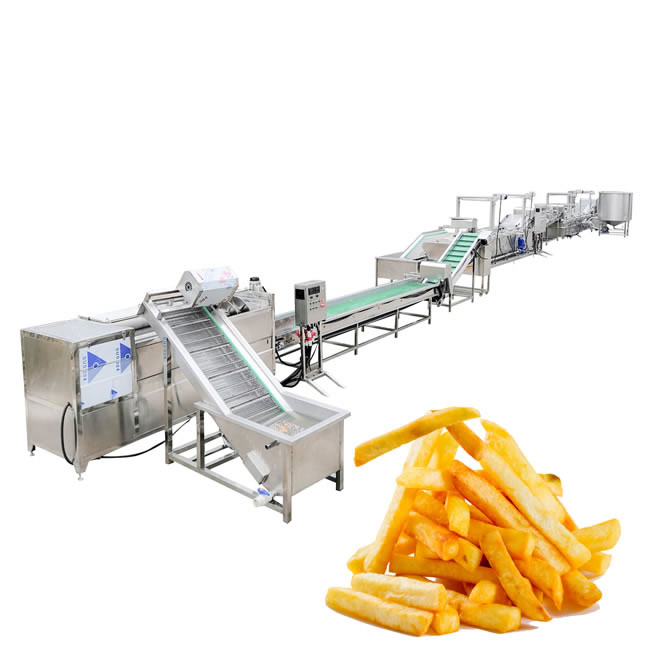

Automatic Frozen French Fries Making Machine Fries Chips Line 200-2000kg/hour

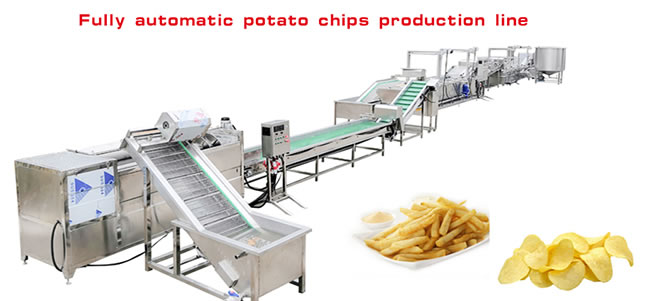

Fully Automatic 200-5000kg/H Potato Chips Production Line Potato Chips Making Machine

1. Process capacity (finished capacity 100kg/h to 2000kg/h) and work flow can be customized.

2. All equipment are made of SUS304,electrical apparatus element are Schneider brand or CHINT brand.
3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
4. The size of French fries and the thickness of potato chips are adjustable. french fry production line
5. For French fries line, we have special equipment to remove the unqualified fries. french fry production line

Fresh Potato Elevator

Potato Washing and Peeling Machine

Unqualified Potato Picking Line

French Fries Cutting Potato Chips Slicing

Fries Pre-washing Elevator with Water Tank

Unqualified Fries Picking Line

Potato Chips and French Fries Washing Machine

Blanching Machine

Vibration De-water Machine

Blowing Line to remove the surface water

Elevator conveyor, transports fries into the fryer

Continuous Frying Machine

Vibrating De-oil Machine

Air-Cooling Machine to remove extra surface oil

Quick-freezing Equipment

Automatic Weighing and Packaging Machine

Fully Automatic 200-5000kg/H Potato Chips Production Line Potato Chips Making Machine

NO.	Name	Quantity	Dimension	Power	Net weight
1	Conveyor hoist machine	1 set	2000*800*2000mm	0.75kw	200kg
2	Cleaning and peeling machine	1 set	1800*900*1500mm	4.75kw	620kg
3	Picking line	1 set	3000*900*900mm	0.75kw	300kg
4	French fries potato chip machine	1 set	950*800*950mm	1.5kw	110kg
5	Washing machine	1 set	3000*1600*900mm	5kw	800kg
6	Blanching machine	1 set	3000*1600*950mm	2.2kw	1000kg
7	Vibration water remover machine	1 set	1500*1000*1300mm	15kw	700kg
8	Picking line	1 set	3000*800*1000mm	0.75kw	300kg
9	Air cooled dewatering machine	1 set	4000*1200*1400mm	15kw	700kg
10	Conveyor hoist machine	1 set	2000*800*1300mm	0.75kw	200kg
11	Electric heating frying line	1 set	3500*1200*2600mm	0.5kw	2200kg
12	Vibration oil remover machine	1 set	1500*1000*1300mm	1.5kw	2200kg
13	Air drying machine	1 set	4000*1200*1600mm	15kw	700kg
14	Conveyor hoist machine	1 set	2000*800*2200mm	0.7No5kw	200kg
15	Seasoning machine	1 set	2000*700*1600mm	1.5kw	400kg
16	Packing Machie	1 set	2400*700*3200mm	1.0kw	400kg
	Our factory supports the customization of production planning scheme. We can design the application scheme diagram of product workshop for free.
	Email:Sale@frenchfriesline.com	Wechat:+86 15249634567		WhatsApp:+86 15249634567

No.	Name	photato	Dimension	Used for
1	Conveyor hoist machine		2000*800*2000mm	It is used to preclean potato,soften the potato skin, then hoist potatoes into washing and peeling machine.
2	Cleaning and peeling machine		1800*900*1500mm	Potato (root vegetables) washing and peeling machine, through the opposite rotation of the hair roller, quickly complete the peeling of potatoes
3	Picking line		3000*900*900mm	Cleaning materials can pass through the sorting line, the unqualified products are screened, into the next link
4	Conveyor hoist machine		2200*800*2000mm	It is used to preclean potato,soften the potato skin, then hoist potatoes into potato cuter slicing machine.

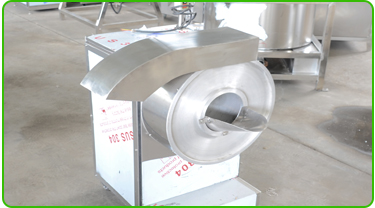

5	Potato slicing machine		950*800*950mm	Potato (root vegetable or fruit) cutting machine, fast cutting machine, cutting thickness can be customized, blade configuration number 1, output 200-500kg/ hour
6	French Fries bubble washing machine		3000*1600*900mm	Bubble cleaning machine adopts water circulation spray system cleaning, secondary cleaning of materials (potato surface starch cleaning)
7	French Fries / Potato chips blanching machine		3000*1600*950mm	80 degrees blanching heating potato chips (material) is harder, not easy to break, potato chips preheating time recommended 1-2 minutes (depending on the material).
8	Air drying water remover machine		3000*1400*1300mm	Quickly dry the water on the surface of potato chip material, according to different material drying mode can be customized
9	Conveyor hoist machine		2200*800*2000mm	It is used to preclean potato,soften the potato skin, then hoist potatoes into chips frying machine.
10	French Fries / Potato chips Gas frying machine		3500*1200*2600mm	Double pipeline gas heating French fries industrial frying machine, according to the demand of heating mode can be customized, gas heating, electric heating, diesel heating, etc
11	Vibration  deoiling machine		1500*1000*1300mm	Vibration mode deoiling machine, the fried potato chips after the surface oil for two deoiling
12	Air drying deoiling machine		3000*1400*1300mm	Quickly dry the oil on the surface of fried potato chips material, according to different material drying mode can be customized
13	Conveyor hoist machine		2200*800*2000mm	Fried potato chips and materials pass through the elevator, into the seasoning machine
14	French fries / Potato chips seasoning machine		2000*700*1600mm	Fried potato chips or other fried food for seasoning, seasoning machine seasoning uniform efficiency is high
15	Conveyor / Picking machine		3000*800*1000mm	The potato chips or fried materials after seasoning are transferred to the packaging machine.

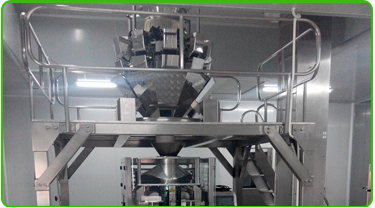

16	Automatic Z type packing machine		5000*1400*1950mm	Configuration includes Z hopper hoist, combined weighing head, operation platform, packaging host,Z type packaging machine high efficiency, packaging weight error -0.05g/+0.05g
17	Automatic French fries tunnel type quick-freezing machine		7000*1400*1950mm	Tunnel type quick-freezing machine, the output of 200-1000kg/ hour, quick-frozen food low temperature up to -45°C,french fries quick-freezing machine support customization
