Automatic packaging machine puffed food packaging equipment industrial packaging machine 520T French fries snacks packing machine

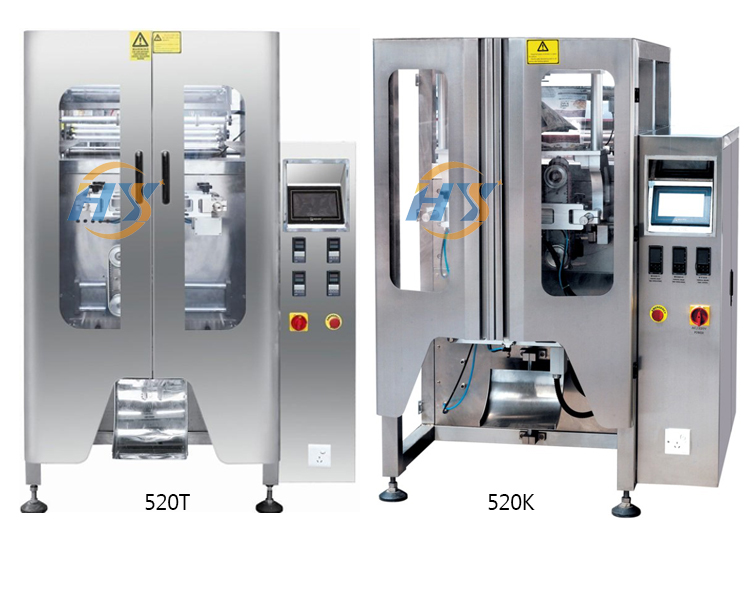

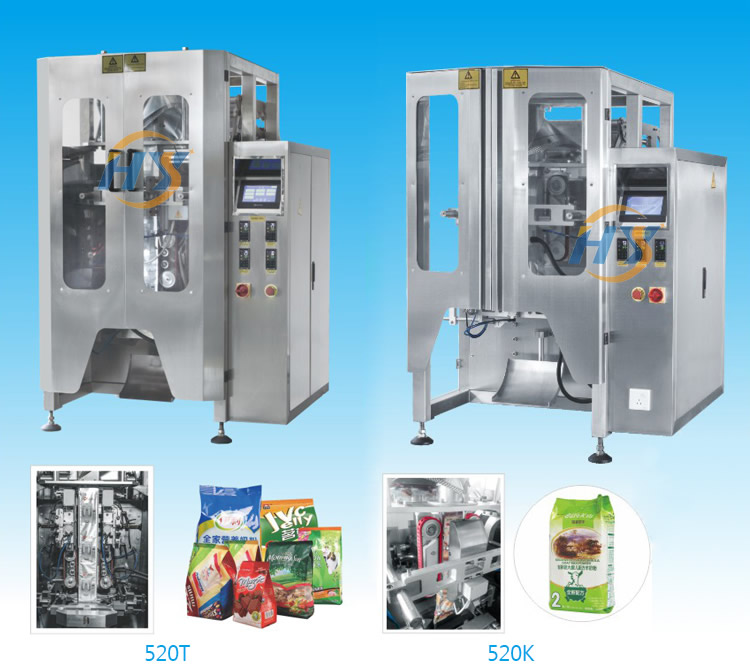

520T-The structural feature
1. The four sides sealing filling machine is added on the packaging bag based on vertical bag, make the packaging bag have astronger spatial vision, nicer appearance and more attraction.

2. PLC control with touch panel-step by step instruction.

3. Equipped with servo winding system, pneumatic contr system.

4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.

5. The perfect automatic alarm safety protection, littie waste. the machine will automatically complete al
packaging processes from feeding, measuring, filling Printing ,finished bag.

Item	Conten
Packing speed	10-40bags/min
Bag-size	Front width:70-180mm
	Side width:60-100mm
	Width of side seal:5-10mm
	Length:100-350mm
Bag making mode	Block boottom type
The max width of packing film	Max 500mm
Power source	4.5KW/220V 50-60Hz
Dimension	(L)1600*(W)1400*(H)2000mm
Total configuration weight	750kg

520K-Vertical Packing Machine Feature：
1. Imported PLC fully computer-controlled system, ouch screen is intuitionist and easy to operate with different lanquages,show you The working state and operating instructions.

2.Vacuum film transportation system,it will more stable,placidly and quickly,small friction,littile waste.Coordinate with Photoelectric automatid positioning tracking system and High positioning
accuracy.

3.Horizontal Sealinq by Servo motor,make it stability,Formation,artistic,Low air consumption.

4.Intelligent digital temperature control system,make the temperature control more stable.with toothed sealer.ensure firm sealing.

5.With automatic fault alarm display function,Such as, If the temperature is.low, no packaging film, no ribbons, no material, servo failure, colorless standard signal, will automatically alarm or shutdown feature when Glass protective door open.

Item	Conten
Packing speed	10-100bags/min
Bag size	(L)80-350mm (W)90-250mm
bag making mode	pillow-type bag,standing bag,pubching device
Range of measuring	3600ml
The max width of packing film	Max 520mm
Air consumption	0.2CBM/min  0.6Pa
Power source	4.5KW/220V 50-60Hz
Dimension	(L)1940*(W)1220*(H)1800mm
Total configuration weight	650kg

Zhengzhou Zhiyin  Industrial Co., LTD is a professional manufacturer integrating meat processing equipment and vegetable cleaning equipment production and sales, has formed a set of raw material supply, product development, process design, finished product inspection, production and operation, storage and transportation, technical services as one of the perfect operating system.
Mainly engaged in sandwich pot series, cooking pot series, mixing pot series, meat processing equipment, vegetable cleaning equipment. The company has advanced processing center, laser cutting equipment, shear plate bending equipment and a full set of testing equipment. The main products are: sandwich pot, cold powder machine, rolling kneading machine, chopping and mixing machine, mixing stuffing machine, meat mincer, enema machine, vegetable cleaning machine, desalination machine, pasteurization machine, vibrating screen, flexible packaging blow-dry machine, etc.

Can be widely used in all kinds of meat products, soy products, dairy products, egg products, seafood, beverage products, snack food sterilization, and agricultural products, herbal processing equipment.

Our company focuses on the production and processing of food machinery, provides customized services according to the needs of different programs, and develops long-term services and cooperation with Europe, Asia, South America and other regions and countries.

1. Why do you choose Zhiyin Food Machinery?

We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.

2. Is the design scheme free of charge?

We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.

3. Production cycle?

We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.

4. After-sales service

We will guide the installation online and provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
