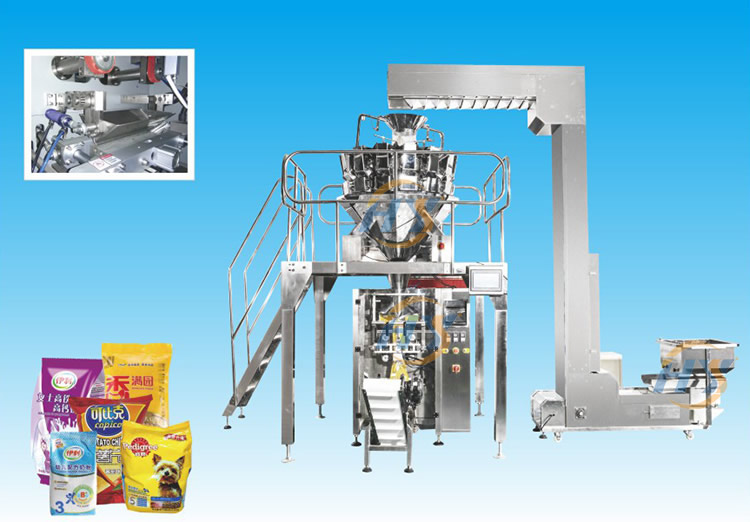

Automatic packaging machine puffed food packaging equipment industrial packaging machine French fries snacks packing machine

420A-French fries packing machine

Item	Conten
Packing speed	15-80bags/min
bag size	(w)80-200mm (L)50-300mm,Secondary membrane 400mm
Bag making mode	Pillow type bag,standing bag,punch device,link-bag device
Range of measuring	150-1500ml
The maxximum width of packing film	420mm
Film material	POPP/CPP,POPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET
Thickness of film	0.04-0.10mm
Air consumption	0.4CBM/min  0.6Pa
Power source	2.5KW/220V 50-60Hz
Dimension	(L)1600*(W)1400*(H)2000mm
Total configuration weight	450kg

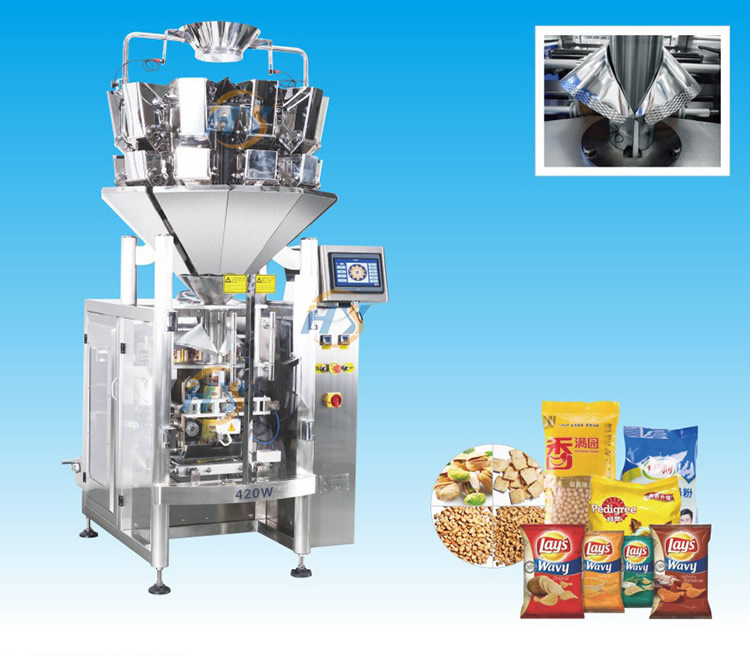

420W automatic packaging machine

Item	Conten
Packing speed	10-80bags/min
bag size	(w)80-200mm (L)50-300mm,Pulling belt two time can Max*Length 400mm
Bag making mode	Pillow type bag,standing bag,punch device,link-bag device
Range of measuring	2000ml
The maxximum width of packing film	420mm
Film material	POPP/CPP,POPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET
Thickness of film	0.04-0.10mm
Air consumption	0.4CBM/min  0.6Pa
Power source	4KW/220V 50-60Hz
Dimension	(L)1720*(W)1030*(H)2254mm
Total configuration weight	450kg

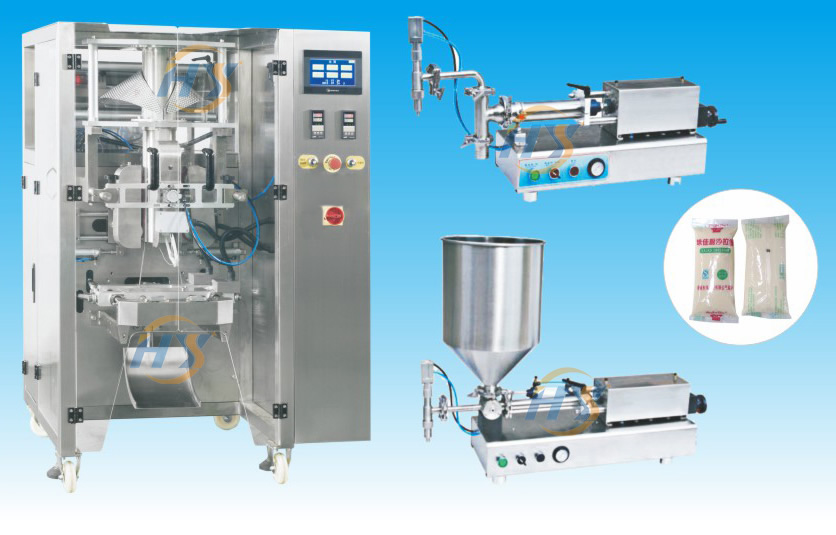

420L-Desktop liquid meter,desk'top paste

Introduce:The machine is suitable for all kinds of filling liquid or cream material, stable machine easy to operate, easy to adjust the volume of filling, optional Manual/automatic mode, high filling precision, simple cleaning, failure rate is extremely low, the machine in addition to the contact with the material parts(316 stainless steel) adopts 304 stainless steel, acid and alkali resistance,corrosion resistance, high temnerature resistant parts.

Introduce:The applicable scope of the filling material:

Cooking oil coffee syrup liquid milk tea juice,Honey shampoo shower gel ink liquid soap liquid soap edible pigment,Yogurt gear oil liquid glue cold cream eye shadow creamy liquid condiment.

Item	Conten
Voltage	AC110/220V,50Hz
Air pressure	0.4-06MPa
Air consumption	0.28-0.7CBM/min
Power	25KW

The resource you are looking for might have been removed, had its name changed, or is temporarily unavailable.

Our company focuses on the production and processing of food machinery, provides customized services according to the needs of different programs, and develops long-term services and cooperation with Europe, Asia, South America and other regions and countries.

Email: Sale@Frenchfriesline.com

Wechat/WhatsApp:+86 15249674563

1. Why do you choose Zhiyin Food Machinery?

We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.

2. Is the design scheme free of charge?

We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.

3. Production cycle?

We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.

4. After-sales service

We will guide the installation online and provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
